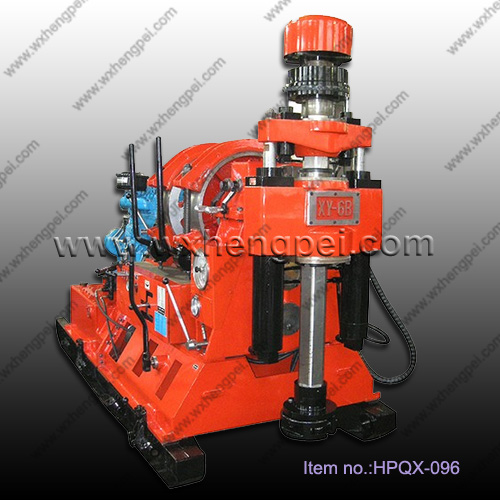

Portable diamond core drill machine for sale XY-6B

  • Product is the original price:0.00
  • inventory:0
  • The product weight:

Quick Details

  • Condition: New

  • Type: Core Drilling Rig

  • Power Type: Electric

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: XY-6B

  • Usage: Water Well

  • Voltage: 380V

  • Power(W): 55KW

  • Dimension(L*W*H):3450*1500*2250m

  • Weight: 3800kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: XY-6B

  • Hole Depth: 1500-2000m

  • Spindle stroke: 600mm

  • Spindle diameter: 96mm

  • Max.Torque: 6000NM

  • Max. Hoisting Force: 60KN

  • Max .lifting capacity: 200KN

  • Max .feeding capacity: 150KN

  • Rope diameter: 20mm

  • Move stroke: 550mm

  • Product Description

  • XY-6B is mainly for geology,coal filed,shallow oil field,natural gas,geothermal survey exploration,also can fit for small hole diamond drilling,and normal water well etc engineering construction.

  •

  • This drilling rig is a vertical core drilling rig with mechanical-hydraulic transmission.It has reasonable structure,smooth and easy operation,reliable work,easy repair etc advantages.

  •

  • Applications:

  • 1. Core drilling with carbide and diamond bit .
    2. Engineering geological exploration.
    3. Water well drilling.
    4. Basic pile foundation engineering in large diameter.

  •

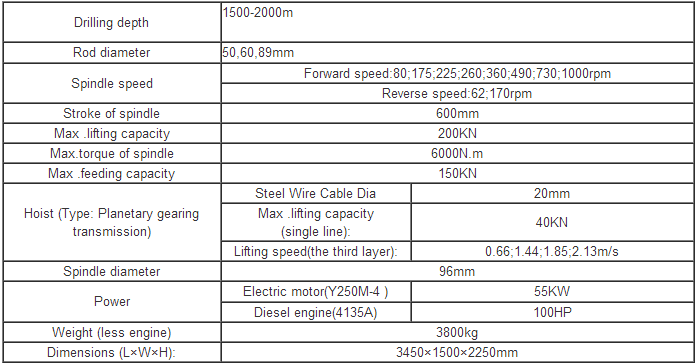

  • Specifications:
